PMD Pyramid Shale Shaker Screen Derrick FLC500 & FLC2000

Package: Carton Box or Wooden Box

Payment Terms: T/T, Paypal.

Shipping Options: FedEx, DHL, UPS, Air Freight, Sea Freight, Train, Truck

Terms: EXW, FOB, CIF, DDU, DDP

Inquiry

Write a Review

Product Information

Wave screen are a type of screen used in oil and gas drilling operations to remove solid particles from drilling fluids. They are designed with a wave-like shape that allows for increased surface area and improved filtration capabilities.

The wave design also helps to reduce the amount of fluid lost during the filtration process, allowing for more efficient drilling operations. Wave screens are made from a variety of materials, including stainless steel, polyurethane, or composite materials. They are available in various mesh sizes and configurations to suit different drilling needs.

Product Feature

1. The stainless steel wire cloth combined directly bonded on the steel plank.then tightly bonded together by steel frames and metal plank.

2. Every layer of wire cloth has different meshes,accurately and reasonably making screening more micro mesh.

3. It forms a reliable whole,with high-strength steel frame,reinforced supports and moderate tension screening cloth, which greatly enhances the tolerate flow, strength and working life. Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing.

4. Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage. At the same time,with a special rubber plug to repair damage,it can save time and reduce use-cost.

Product parameters

Screen Model	Range of Mesh	Dimension(widthx Length)	Brand & Model of Shaker
HT-1(WAVE)	20-325	697×1053mm	DERRICK FLC2000
HT-2(WAVE)	20-325	695×1050mm	DERRICK FLC500
HT-3(WAVE)	20-325	710×626mm	DERRICK FLC600
HT-4(WAVE)	20-325	567×1070mm	DERRICK-HYP
HT-5(WAVE)	20-325	635X1253mm	BRANDT BL-50
HT-6(WAVE)	20-325	915X1150mm	BRANDT LCM-ZD

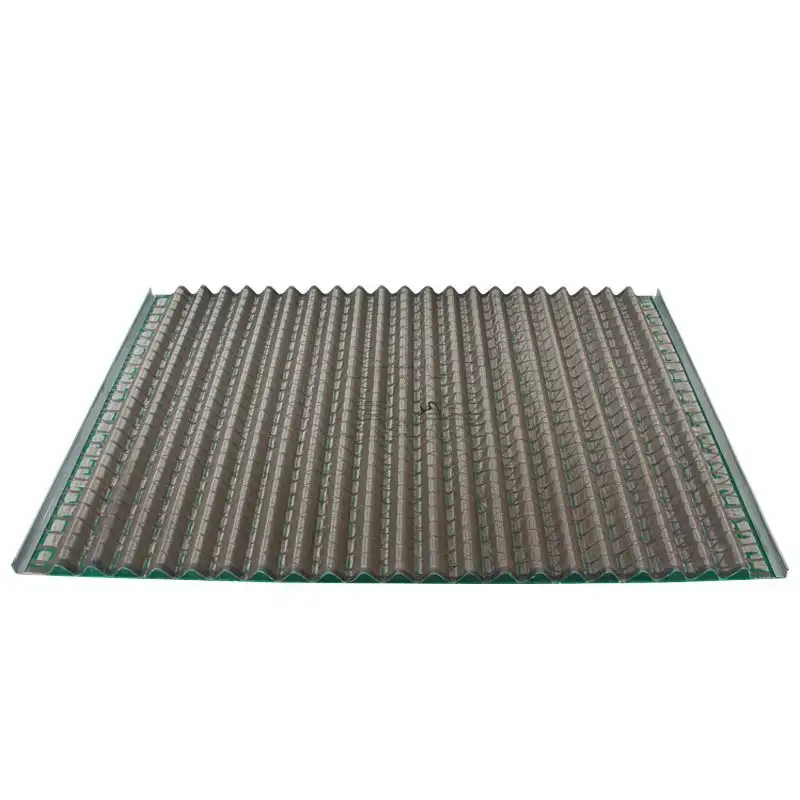

product display

Wave Screen详细图 (7)

Wave Screen详细图 (6)

Wave Screen详细图 (1)

Photos Show

2 (9)

未标题-1 (4)

fAQ

What is a petroleum shaker screen?

Petroleum shakers are components used in the oil and gas industry to separate solids and liquids during drilling. They are installed in shaker machines used to filter solid particles from drilling mud.

What material is used to make petroleum shaker screen?

Screen Medias are made from different materials including wire mesh, perforated metal, and synthetic materials like polyurethane and rubber. Each material has unique characteristics that affect the efficiency of the vibrating screen.

How to choose a suitable petroleum shaker?

The size and type of oil shaker depends on the drilling operation and the type of sediment that needs to be filtered out. Factors to consider include mesh size, mesh size, and the material used to make the screen.

What are the benefits of using a petroleum shaker?

Petroleum shaker screen provide several benefits during drilling, including reduced downtime, improved drilling efficiency, and a cleaner and safer working environment. Screens help remove solid particles from drilling mud, preventing damage to drilling equipment and reducing the risk of accidents.

How long can the petroleum shaker be used?

The service life of a petroleum shale shaker depends on several factors, including the type of material used, frequency of use and drilling conditions. On average, a vibrating screen can last from 20 to 250 hours of continuous use. Regular maintenance and proper storage will help extend the life of your screen.
